LDO Layout

Overview

The LDO layout has a total size of 137μm x 399μm. Most of the area is occupied by the pass transistor, which uses roughly 87% of the space.

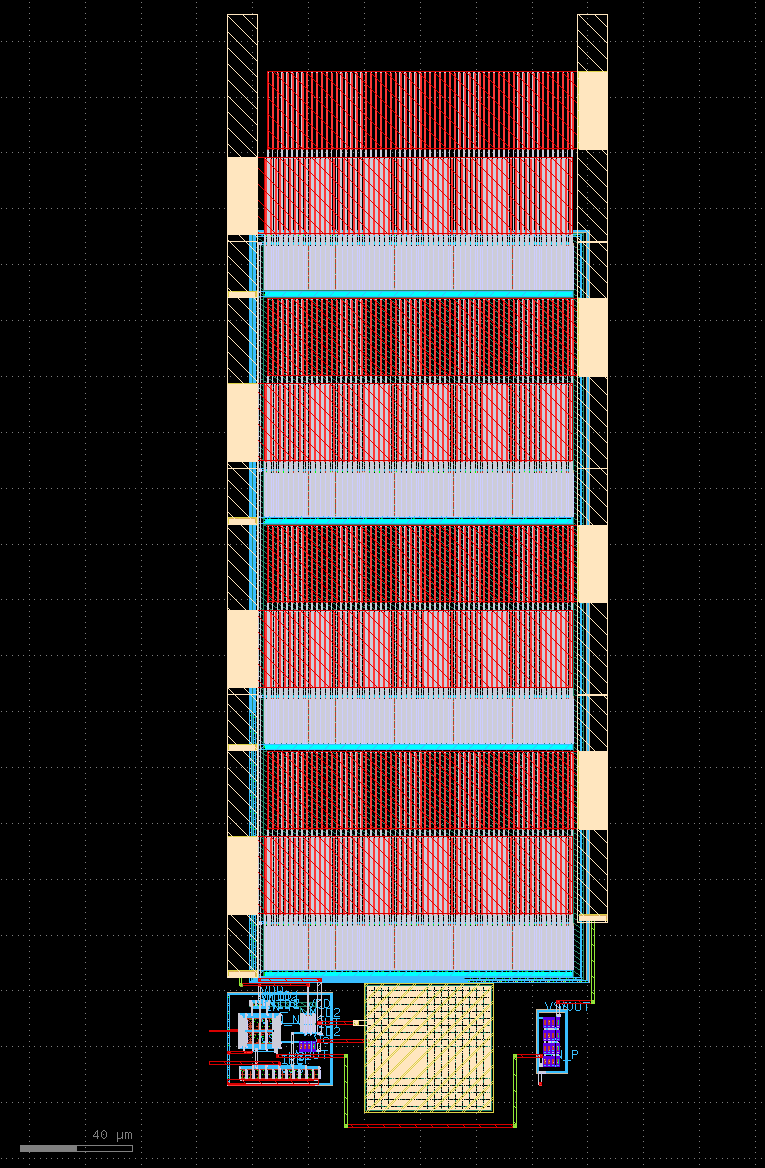

The LDO Layout figure was taken from KLayout.
