OTA Layout

Overview

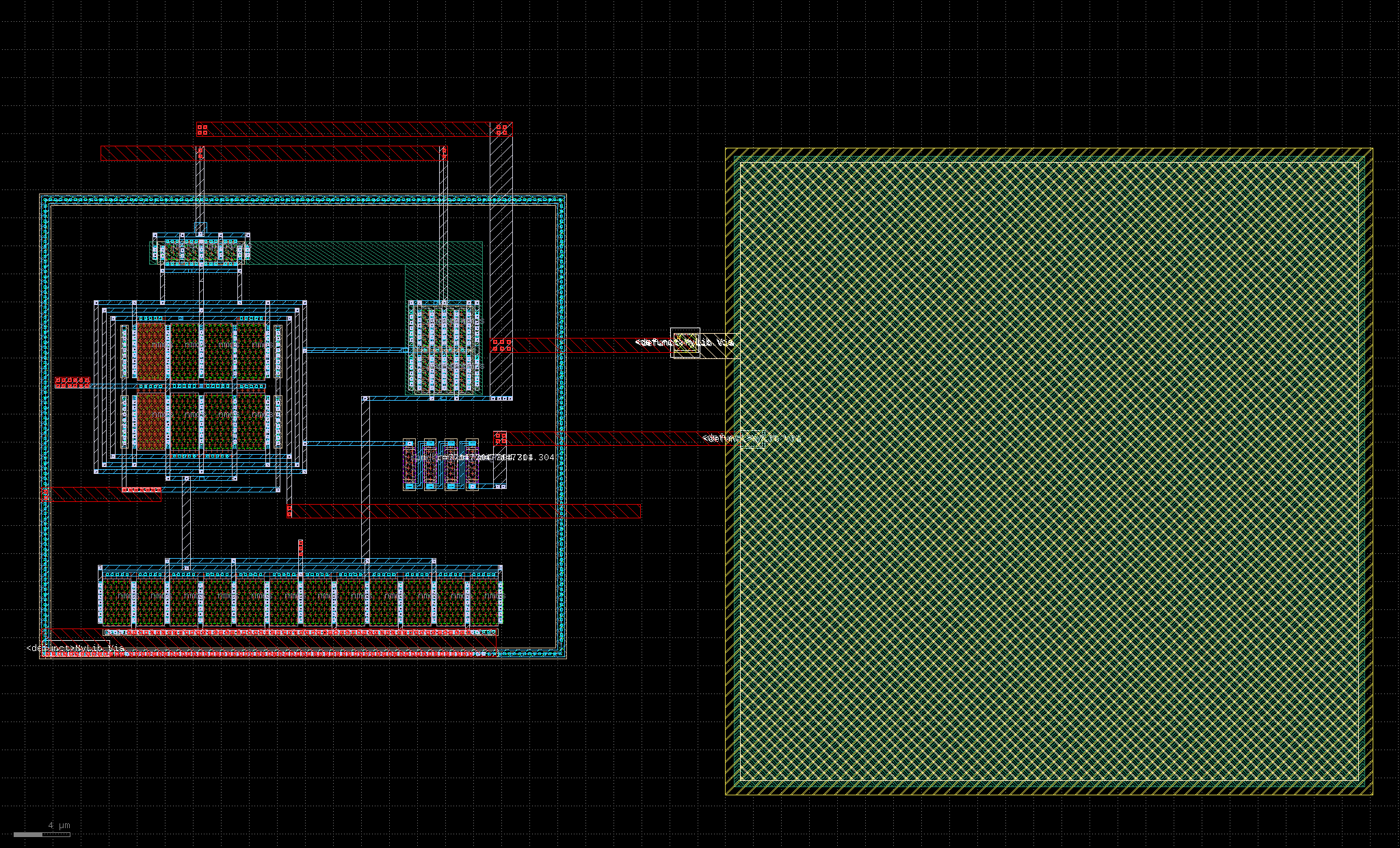

The OTA layout has a total size of 95μm x 49μm. Most of the area is occupied by the miller capacitor, which uses roughly 48% of the space.

The OTA Layout figure was taken from KLayout.
